Table Top Supports
Two full length, 1-3/4” D x 16-gauge cold rolled steel apron channels with rounded edges and dressed off end fittings for safety.
Twin Dual Center Legs
1” x 1” 16-gauge box tubing at the center of the table provides positive, direct support for each half of the table top.
Consists of three tubes for rigid, long lasting strength. One is welded on top, the bottom tube has an extra tube inside. Outer tubes, wall thickness of .072”.

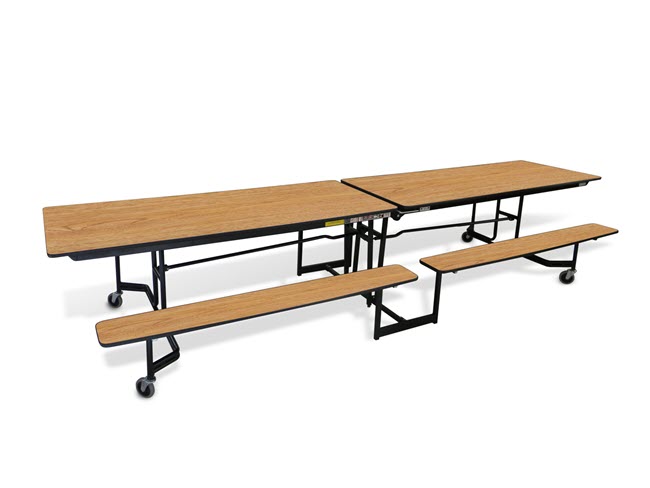

12’-1” Benches (4) are 9-1/2” x 64” and are 17” H for proper knee clearance. Seats are 9” x 13” with “no-wobble” steel plate supports underneath.
Table & Seat Tops
Table tops, bench tops are made with 45lbs density particleboard core with high pressure laminated top, balanced with durable Gator™ black backer. Tops are edged with Mitchell custom DuraEdge™ a heavy polyvinyl, extend-ed bullnose for maximum bump protection and moisture barrier, or Lotz Ar-morEdge™ the original Polyurea black moisture retardant edge (MDF core. )
Tops are attached with full threaded, hex head screws with a minimum holding power of 300lbs. Each fastener is machine driven and seated. The hex head permits normal maintenance of units if required.
Steel uplocks automatically engage when table’s folded and manually release for user position. Downlock engages automatically to prevent the possibility of a jackknife; manual release is accessible from both sides of the table.
Welded steel brackets and fittings solidly join and position legs to channel support aprons and anchor the torsion bar lift assists.
Industry best dual lift assists, both concealed torsion bars and extension springs for easy operation throughout the use of the table.
End legs are available in either Black Epoxy Powder Coat or Nickel Chromium. The understructure is black powder coat.
