In-Wall Systems

In-Wall Systems

As an innovator in wall mounted table and bench systems since the early 1950’s, Mitchell offers value without compromising its pledge for a safe and secure product that will provide decades of service. We’re proud of the advanced engineering and quality manufacturing that goes into each of our in-wall systems produced in our Wisconsin USA factory.

Consider These Mitchell Wall Mounted Features

  • Up to four tables and up to eight benches can be securely stored in a cabinet
  • The safest and most secure table bench system in the industry for:
    • Leaf to leaf storage locks
    • Post locks with keys
    • Automatic locking hinges
  • Nobody else offers you as many choices:
    • Laminate: Virtually any laminate you want (for table and seating)
    • Length: 10, 12, 13, or 14ft
    • Height: 25″, 27″, 29″, or 30″ (Table) / 15″, 17″, or 20″ (Bench)
    • Width: 28″ or 30″ (Table) / 10″ or 12″ (Bench)
  • ADA compliant version available
  • Call us for further details

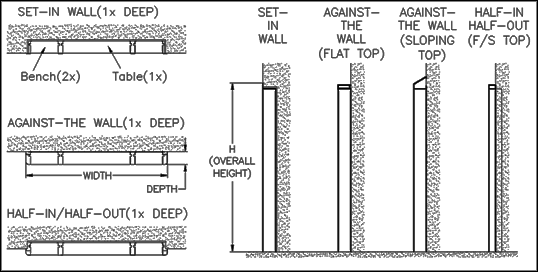

  • “S” – Set-In Wall System
  • “A” – Against Wall System
    (With Flat Top or with 30° Sloped Top.)
  • “H” – Half-in / Half-out Wall System
  • Lengths: 14’ 13’ 12’ and 10’
  • Table Widths: 28” and 30”
  • Bench Widths: 10” and 12”

Mitchell Tables System Choices

  • Each table holds 14 to 18 children
  • Single Depth Cabinet is 5-15/16″ Deep (1 table 2 benches)
  • Double Depth Cabinet is 11-3/8″ Deep (2 tables 4 benches)
  • Triple Depth Cabinet is 17″ Deep (3 tables 6 benches)
  • Quad Depth Cabinet is 22-1/2″ Deep (4 tables 8 benches)

Wall Mount Table Seating

Over One Hundred Laminate color choices are available. You may want to choose one color for the table top and another contrasting color for the bench top or have both tops the same color; the choice is yours.

Click here for Other Wilsonart® Color Options

Mitchell wall mount Colors 300

  • Dura-Edge® molding
  • Poly Edge bonded composite

Mitchell Table Edge Treatment

Mitchell’s Table and Bench Top Materials are GREENGUARD® Indoor Air Quality Certified Components.

  • 3/4″ Particle Board Core (Standard)
  • 3/4″ MDF Core (Standard with Poly Edge)
  • 3/4″ Plywood Core
  • Wilsonart® Laminate (Standard)
  • Other laminate manufacturers can be considered
  • Gator-Ply® Green Gator Backer (Standard Backer Board)

Greenguard Logo

Metal Parts

  • 56-170L Left Track Arm Assembly
  • 56-171R Right Track Arm Assembly
  • 44-026 2” Stationary Wheel
  • 44-045 2” Swivel Wheel
  • 56-585 08 Series Female Catch – Storage Lock
  • 56-595 08 series Male Storage Lock Assembly
  • 43-125 Hydraulic Spring 08 series 14’ / 13’

Table Tops w/DuraEdge®

  • 06-2880.500 Table Top Inner Leaf 28” W x 80-1/2” L
  • 06-3080.500 Table Top Inner Leaf 30” W x 80-1/2” L
  • 06-2882.750 Table Top Outer Leaf 28” W x 82-3/4” L
  • 06-3082.750 Table Top Outer Leaf 30” W x 82-3/4” L

Bench Tops w/DuraEdge®

  • 06-1080.500 Bench Top Inner Leaf 10” W x 80-1/2” L
  • 06-1280.500 Bench Top Inner Leaf 12” W x 80-1/2” L
  • 06-1082.750 Bench Top Outer Leaf 10” W x 82-3/4” L
  • 06-1282.750 Bench Top Outer Leaf 12” W x 82-3/4” L





Features Gallery

(Click for detailed view and description)
